Servo Drives

DEP Series

Description

The DEP is a high-performance, DC powered amplifier for position, velocity, and torque control of brushless and brush motors via EtherCAT, an Ethernet-based fieldbus.

Product's features

DC Supply Voltage
CANopen over EtherCAT (CoE)
Supports Multiple Operating Modes

14 Wire Standard Incremental Encoder Type

Driver P/N	Combined Actuator	Supply Voltage	Actuator Cont. Current	Actuator Peak Current
DEP-090-09	RSF-3B-30 / 50 / 100-US020	DC24V	0.9 / 0.9 / 0.8 A	2.1 / 2.0 / 1.6 A
	RSF-5A-30 / 50 / 100-US050		1.6 / 1.3 / 1.1 A	3.2 / 3.1 / 2.4 A
	RSF-8B-30 / 50 / 100-F100-24B		2.8 / 2.8 / 2.1 A	5.4 / 5.5 / 4.1 A
	FHA-8C-30 / 50 / 100-US200-E		2.3 / 2.4 / 1.8 A	4.2 / 4.7 / 3.4 A
DEP-090-18	FHA-11C-30 / 50 / 100-US200-E		5.2 / 5.0 / 4.0 A	11 / 12 / 7.9 A
DEP-090-36	RSF-11B-30 / 50 / 100-F100-24B		7.1 / 6.9 / 6.9 A	20 / 22 / 13 A
	RSF-14B-30 / 50 / 100-F100-24B		6.9 / 6.7 / 6.7 A	20 / 24 / 17 A
	FHA-14C-30 / 50 / 100-US200-E		8.5 / 7.6 / 6.2 A	21 / 23 / 17 A
	FHA-17C-50* / 100* / 160-US250-E-SP		12* / 12* / 11 A	36* / 31 / 23 A

4 Wire Serial Communication Incremental Encoder Type

Driver P/N	Combined Actuator	Supply Voltage	Actuator Cont. Current	Actuator Peak Current
DEP-090-09	FHA-8C-30 / 50 / 100-E200-E	DC24V	2.3 / 2.4 / 1.8 A	4.2 / 4.7 / 3.4 A
DEP-090-18	FHA-11C-30 / 50 / 100-E200-E		5.2 / 5.0 / 4.0 A	11 / 12 / 7.9 A
DEP-090-36	FHA-14C-30 / 50 / 100-E200-E		8.5 / 7.6 / 6.2 A	21 / 23 / 17 A

HD Absolute Encoder A Type

Driver P/N	Combined Actuator	Supply Voltage	Actuator	Actuator
Driver P/N	Combined Actuator	Supply Voltage	Cont. Current	Peak Current
DEP-090-09	FHA-8C-30 / 50 / 100	DC24V	2.3 / 2.4 / 1.8 A	4.2 / 4.7 / 3.4 A
DEP-090-18	FHA-11C-30 / 50 / 100		5.2 / 5.0 / 4.0 A	11 / 12 / 7.9 A
DEP-090-36	FHA-14C-30 / 50 / 100		8.5 / 7.6 / 6.2 A	21 / 23 / 17 A
DEP-090-36	SHA25A-51/81/101/121/161	DC48 to 90 V	12.1 A	35.4/35.4/35.4/32.6/26.9 A
DEP-090-36	SHA32A-51/81/101/121/161	DC48 to 90 V	12.1 A	35.4 A

Incremental Encoder Type ( Line driver output )

Driver P/N	Combined Actuator	Supply Voltage	Actuator	Actuator
Driver P/N	Combined Actuator	Supply Voltage	Cont. Current	Peak Current
DEP-090-09	RH -5A-8802/5502/4402 E-xxxAL	DC20V	0.7A	1.2/1.1/1.1A
	RH -8D-6006/3006 E-xxxAL	DC24V	1.4/1.1A	2.3/1.6A
	RH -11D-6001/3001 E-xxxAL		1.8A	3.4/3.0A
	RH -14D-6002/3002 E-xxxAL		2.5A	7.6/5.8A

Control Modes

Indexer, Point-to-Point, PVT
Camming, Gearing
Position, Velocity, Torque

Command Interface

CANopen over EtherCAT (CoE)
ASCII and discrete I/O
±10V position/velocity/torque command
Master encoder (Gearing/Camming)

Encoder Interface

14 wire Incremental Encoder
4 wire Incremental Encoder
Absolute Encoder

Communications

EtherCAT
RS-232

I/O – Digital

8 inputs, 3 outputs

Dimensions: mm [in]

196 x 99 x 31 [7.7 x 3.9 x 1.2]

Accessories for DEP Driver

P/N	Description
AEP-CK	Solder Cup Connector Kit
AEP-CA	Cable Assembly Connector Kit
AEP-HK	Heat Sink Kit
AEP-NC-10	EtherCAT Network Cable 10'
AEP-NC-01	EtherCAT Network Cable 1'
SER-CK	Serial Cable Kit ( 1 per computer ) (to be used with CME2 software only)
	Extention cabele to RSF-supermini (include open corrector to line dliver converter)
	Extention cabele to RSF-mini
	Extention cabele to FHA-mini
	Absolute encoder multi turn signal buck up battery

Encoder Wire Connection for DEP Driver

Pin	Signal	Wire Color
		RSF-Supermini	RSF-B mini	FHA-C mini			FHA-C			SHA (Low-Voltage)
		Incremental (Extension Cable)	14 Wire Incremental	14 Wire Incremental	4 Wire Serial (HD Incremental)	Absolute (HD Absotute A)	14 Wire Incremental	4 Wire Serial (HD Incremental)	Absolute (HD Absotute S)	Absolute (HD Absotute A)	BISS-C (HD BISS-C)
1	FG	Shield	Shield	Shield	Shield	Shield	Shield	Shield	Shield	Shield	Shield
2	GND	Black/White	(Enc) Black	Black	Black	Black	Black	Black	Black	Black	Gray
3	+5V(Vcc)	Red/White	(Hall) White	Red	Red	Red	Red	Red	Red	Red	Red
3	+5V(Vcc)	Red/White	(Enc) White	Red	Red	Red	Red	Red	Red	Red	Red
4	A	White	(Enc) Brown	Green	-	-	Green	-	-	-	-
5	A/	Black	(Enc) Blue	Dark green	-	-	Green/White	-	-	-	-
6	B	Red	(Enc) Red	Gray	-	-	Gray	-	-	-	-
7	B/	Blue	(Enc) Green	White	-	-	Gray/White	-	-	-	-
8	Z	Green	(Enc) Yellow	Yellow	-	-	Yellow	-	-	-	Yellow
9	Z/	Yellow	(Enc) Orange	Clear	-	-	Yellow/White	-	-	-	Brown
10	S	-	-	-	Yellow	Yellow	-	Yellow	Yellow	Yellow	Green
20	S/	-	-	-	Blue	Blue	-	Blue	Blue	Blue	Black
11	U	Orange	(Hall) Brown	Brown	-	-	Brown	-	-	-	-
12	V	Purple	(Hall) Red	Blue	-	-	Blue	-	-	-	-
13	W	Pink	(Hall) Yellow	Orange	-	-	Orange	-	-	-	-
14	Motemp[IN8]	-	-	-	-	-	-	-	-	-	-
15	GND	-	(Hall) Black	-	-	-	-	-	White	White	-

Download Larger Version (PDF, 66KB)

	Company Overview
	Contact Us
	AS9100C / ISO 9001:2008
	US Locations
	Group Companies
	C. W. Musser

	Actuators
	Servo Drives
	Gearheads
	Component Sets

	Advantages
	Application Notes
	Operating Principles
	Application Handbook

	Catalogs (PDF)
	CAD Downloads
	HDM Downloads
	Safety Data Sheets
	Terms & Conditions

Servo Drives

DEP Series

Description

Product's features

14 Wire Standard Incremental Encoder Type

4 Wire Serial Communication Incremental Encoder Type

HD Absolute Encoder A Type

Incremental Encoder Type ( Line driver output )

Control Modes

Command Interface

Encoder Interface

Communications

I/O – Digital

Dimensions: mm [in]

Accessories for DEP Driver

Encoder Wire Connection for DEP Driver

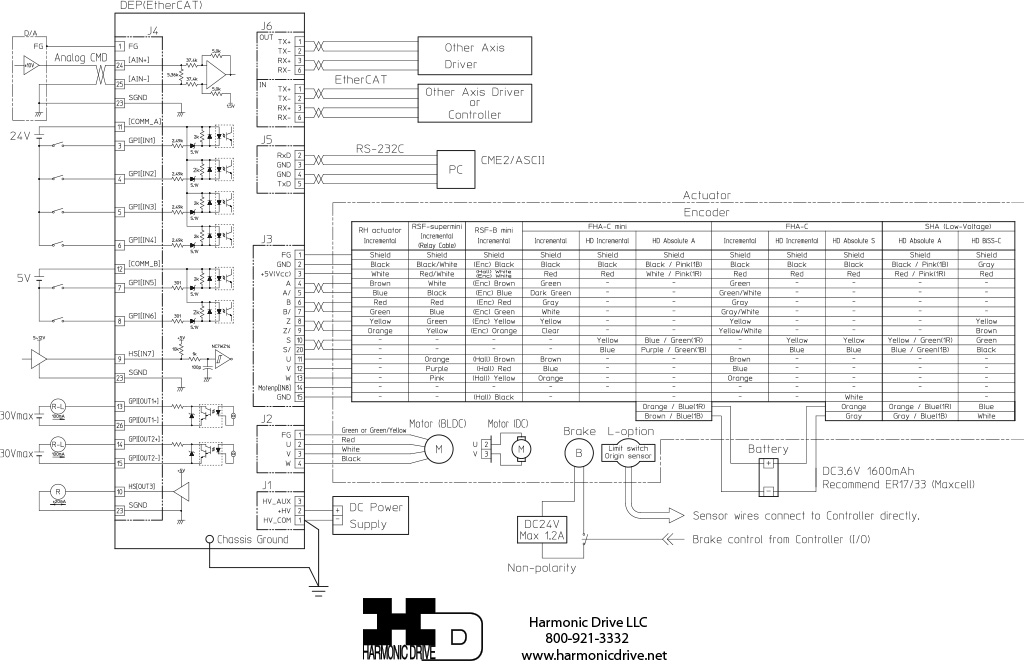

Wiring Example for DEP Driver
