Gearheads

SHG Series
SHG-2UH
SHG-2UH-LW

SHG Series
SHG-2UJ

SHG Series
SHG-2SO

SHG High Torque Gearhead - Standard Series and New Lightweight Series!

Harmonic Drive® SHG series gearheads are improved, high torque version of the SHF series. All torque ratings and L10 life are all significantly improved compared to the SHF series gearhead of the same size.
  • 30% higher rated torque
  • 30% higher repeated peak torque
  • 30% higher maximum momentary torque
  • 42% longer life (L10 of 10,000 hours)
  • The external dimensions, mass, torsional stiffness, moment stiffness, positional accuracy, repeatability, input moment of inertia, etc. are all the same as SHF series gearheads.
The SHG-2UH series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability. The gearhead incorporates a Harmonic Drive® gear component into an integral housing. In addition to the hollow shaft, the gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings. A New lightweight version is now available which provides the same output torque with a mass averaging 20% lower than the standard series!


Ordering Code

SHG - 25 - 100 - 2UH - LW SP
1 2 3 4 5 6
1. Model Name : SHG series
2. Size : 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
3. Gear Ratio : 50, 80, 100, 120, 160
4. Model
  • 2UH
  • 2UJ
  • 2SO
  • 2SH
    		•
    = Gearhead / Hollow Shaft gear unit
    = Gearhead / Shaft Input gear unit
    = Simplicity Gear Unit (Solid Input Shaft)
    = Simplicity Gear Unit (Hollow Input Shaft)
    5. Lightweight : LW – Lightweight (Available for 2UH only. Leave blank for Standard Product)
    6. SP : Customized Specification (Leave blank for Standard Product)

    Rating table

    Size
    Gear
    Ratio
    		Rated Torque
    at 2000 rpm    		 Limit for Repeated
    Peak Torque    		 Limit for
    Average Torque    		 Limit for
    Momentary Torque
    Max.
    Input Speed
    (grease)
    2UH
    Downloads

    2UH-LW
    Download

    2UJ
    Download

    2SO
    Download

    2SH
    Download
    Nm lb-in Nm lb-in Nm lb-in Nm lb-in rpm
    Links
    Links
    Links
    Links
    Links
    14 50 7 62 23 204 9 80 46 407 8,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 10 89 30 266 14 124 61 540
    100 10 89 36 319 14 124 70 620
    17 50 21 186 44 389 34 301 91 805 7,300
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 29 257 56 496 35 310 113 1,000
    100 31 274 70 620 51 451 143 1,266
    120 31 274 70 620 51 451 112 991
    20 50 33 292 73 646 44 389 127 1,124 6,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 44 389 96 850 61 540 165 1,460
    100 52 460 107 947 64 566 191 1,690
    120 52 460 113 1,000 64 566 191 1,690
    160 52 460 120 1,062 64 566 191 1,690
    25 50 51 451 127 1,124 72 637 242 2,142 5,600
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 82 726 178 1,575 113 1,000 332 2,938
    100 87 770 204 1,806 140 1,239 369 3,266
    120 87 770 217 1,921 140 1,239 395 3,496
    160 87 770 229 2,027 140 1,239 408 3,611
    32 50 99 876 281 2,487 140 1,239 497 4,399 4,800
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 153 1,354 395 3,496 217 1,921 738 6,532
    100 178 1,575 433 3,832 281 2,487 841 7,443
    120 178 1,575 459 4,062 281 2,487 892 7,895
    160 178 1,575 484 4,284 281 2,487 892 7,895
    40 50 178 1,575 523 4,629 255 2,257 892 7,895 4,000
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 268 2,372 675 5,974 369 3,266 1,270 11,240
    100 345 3,054 738 6,532 484 4,284 1,400 12,391
    120 382 3,381 802 7,098 586 5,187 1,530 13,542
    160 382 3,381 841 7,443 586 5,187 1,530 13,542
    45 50 229 2,027 650 5,753 345 3,054 1,235 10,931 3,800
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 407 3,602 918 8,125 507 4,487 1,651 14,613
    100 459 4,062 982 8,691 650 5,753 2,041 18,064
    120 523 4,629 1,070 9,470 806 7,134 2,288 20,250
    160 523 4,629 1,147 10,152 819 7,249 2,483 21,976
    50 80 484 4,284 1,223 10,824 675 5,974 2,418 21,401 3,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    100 611 5,408 1,274 11,276 866 7,665 2,678 23,702
    120 688 6,089 1,404 12,426 1,057 9,355 2,678 23,702
    160 688 6,089 1,534 13,577 1,096 9,700 3,185 28,190
    58 80 714 6,319 1,924 17,029 1,001 8,860 3,185 28,190 3,000
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    100 905 8,010 2,067 18,294 1,378 12,196 4,134 36,589
    120 969 8,576 2,236 19,790 1,547 13,692 4,329 38,315
    160 969 8,576 2,392 21,171 1,573 13,922 4,459 39,465
    65 80 969 8,576 2,743 24,278 1,352 11,966 4,836 42,802 2,800
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    100 1,236 10,940 2,990 26,464 1,976 17,489 6,175 54,653
    120 1,236 10,940 3,263 28,880 2,041 18,064 6,175 54,653
    160 1,236 10,940 3,419 30,261 2,041 18,064 6,175 54,653

    Outline Drawings and Dimensions

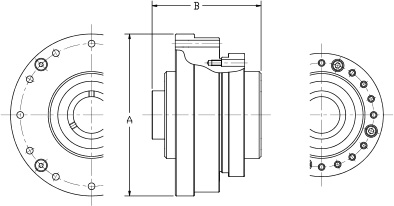

    SHG-2UH and 2UH-LW

    Unit: mm
    Model No
    14
    17
    20
    25
    32
    40
    45
    50
    58
    65
    Symbol
    øA
    74
    84
    95
    115
    147
    157
    195
    220
    246
    284
    B
    52.5
    56.5
    51.5
    55.5
    65.5
    79
    85
    93
    106
    128
    Mass(kg)
    2UH
    0.71
    1.00
    1.38
    2.1
    4.5
    7.7
    10.0
    14.5
    20.0
    28.5
    2UH-LW
    0.55
    0.80
    1.1
    1.6
    3.6
    6.2
    8
    11.8
    16.4
    23.3

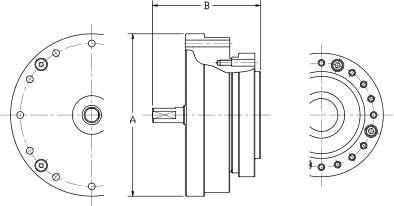

    SHG-2UJ

    Unit: mm
    Model No
    14
    17
    20
    25
    32
    40
    45
    50
    58
    65
    Symbol
    øA
    74
    84
    95
    115
    147
    157
    195
    220
    246
    284
    B
    50.5
    56
    63.5
    72.5
    84.5
    100
    108
    121
    133
    156
    Mass(kg)
    0.66
    0.94
    1.38
    2.1
    4.4
    7.3
    9.8
    13.9
    19.4
    26.5

    SHG-2SO and 2SH

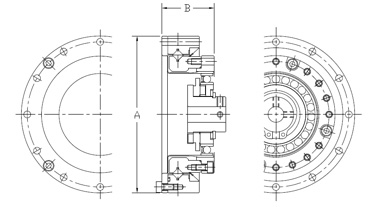

    SHG-2SO

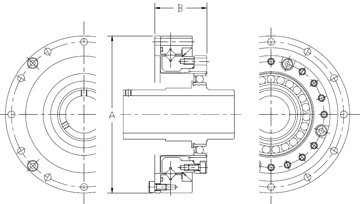

    SHG-2SH

    Unit: mm
    Model No
    14
    17
    20
    25
    32
    40
    45
    50
    58
    65
    Symbol
    øA
    70
    80
    90
    110
    142
    170
    190
    214
    240
    276
    B
    50.5
    56
    63.5
    72.5
    84.5
    100
    108
    121
    133
    156
    Mass(kg)
    2SO
    0.41
    0.57
    0.81
    1.31
    2.94
    5.1
    6.5
    9.6
    13.5
    19.5
    2SH
    0.45
    0.63
    0.89
    1.44
    3.10
    5.4
    6.9
    10.2
    14.1
    20.9

    Positional Accuracy

    Unit: arc-min
    Gear Ratio
    Size
    14
    17
    20
    25
    32
    40-65
    30
    Standard
    2.0
    1.5
    1.5
    1.5
    1.5
    -
    Special
    -
    -
    1.0
    1.0
    1.0
    -
    50 and
    larger
    Standard
    1.5
    1.5
    1.0
    1.0
    1.0
    1.0
    Special
    1.0
    1.0
    0.5
    0.5
    0.5
    0.5
