Gearheads

SHF Series
SHF-2UH
SHF-2UH-LW

SHF Series
SHF-2UJ

SHF Series
SHF-2SO

SHF Gearhead - Standard Series and New Lightweight Series!

The SHF-2UH series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability. The gearhead incorporates a Harmonic Drive® gear component into an integral housing. In addition to the hollow shaft, the gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings. A New lightweight version is now available which provides the same output torque with a mass averaging 20% lower than the standard series!

Key Features Common to All Series

·  High torque
·  Zero Backlash
·  Accuracy <1 arc-min (most sizes)
·  High torsional stiffness
·  Robust cross roller output bearing
·  Output flange for direct mounting of load

2UH Series Features

·  Large Hollow Input Shaft

2UH Lightweight Series Features

·  Large Hollow Input Shaft
·  20% lower weight than Standard SHF
·  High Torque to Weight ratio

2UJ Series Features

·  Conventional Input Shaft

2SO and 2SH Series Features

·  Simplicity unit (without housing)
·  Designed to be integrated directly into a robot or machine to minimize cost and weight

Applications

·  Robot: Joint Drive, End Effector
·  Machine Tool: Tool Changer, 4th and 5th axis

·  Mobile Robots: Wheel Drive, Robot Arm

Ordering Code

SHF - 25 - 100 - 2UH - LW SP
1 2 3 4 5 6
1. Model Name : SHF series
2. Size : 11, 14, 17, 20, 25, 32, 40, 45, 50, 58
3. Gear Ratio : 30, 50, 80, 100, 120, 160
4. Model
  • 2UH
  • 2UJ
  • 2SO
  • 2SH
    		•
    = Gearhead / Hollow Shaft gear unit
    = Gearhead / Shaft Input gear unit
    = Simplicity Gear Unit (Solid Input Shaft)
    = Simplicity Gear Unit (Hollow Input Shaft)
    5. Lightweight : LW – Lightweight (Available for 2UH only. Leave blank for Standard Product)
    6. SP : Customized Specification (Leave blank for Standard Product)

    Rating table

    Size
    Gear
    Ratio
    		Rated Torque
    at 2000 rpm    		 Limit for Repeated
    Peak Torque    		 Limit for
    Momentary Torque
    Max.
    Input Speed
    (grease)
    2UH
    Downloads

    2UH-LW
    Download

    2UJ
    Download

    2SO
    Download

    2SH
    Download
    Nm lb-in Nm lb-in Nm lb-in rpm
    Links
    Links
    Links
    Links
    Links
    11 50 3.5 31 8.3 73 17 150 8,500 PDF DXF N/A N/A N/A N/A
    100 5 44 11 97 25 221
    14 30 4 35 9 80 17 150 8,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    50 5.4 48 18 159 35 310
    80 7.8 69 23 204 47 416
    100 7.8 69 28 248 54 478
    17 30 8.8 78 16 142 30 266 7,300
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    50 16 142 34 301 70 620
    80 22 195 43 381 87 770
    100 24 212 54 478 110 973
    120 24 212 54 478 86 761
    20 30 15 133 27 239 50 443 6,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    50 25 221 56 496 98 867
    80 34 301 74 655 127 1,124
    100 40 354 82 726 147 1,301
    120 40 354 87 770 147 1,301
    160 40 354 92 814 147 1,301
    25 30 27 239 50 443 95 841 5,600
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    50 39 345 98 867 186 1,646
    80 63 558 137 1,213 255 2,257
    100 67 593 157 1,390 284 2,514
    120 67 593 167 1,478 304 2,691
    160 67 593 176 1,558 314 2,779
    32 30 54 478 100 885 200 1,770 4,800
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    50 76 673 216 1,912 382 3,381
    80 118 1,044 304 2,691 568 5,027
    100 137 1,213 333 2,947 647 5,726
    120 137 1,213 353 3,124 686 6,072
    160 137 1,213 372 3,292 686 6,072
    40 50 137 1,213 402 3,558 686 6,072 4,000
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 206 1,823 519 4,594 980 8,674
    100 265 2,345 568 5,027 1,080 9,559
    120 294 2,602 617 5,461 1,180 10,444
    160 294 2,602 647 5,726 1,180 10,444
    45 50 176 1,558 500 4,425 950 8,408 3,800
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 313 2,770 706 6,249 1,270 11,240
    100 353 3,124 755 6,682 1,570 13,896
    120 402 3,558 823 7,284 1,760 15,577
    160 402 3,558 882 7,806 1,910 16,905
    50 50 245 2,168 715 6,328 1,430 12,657 3,500
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 372 3,292 941 8,329 1,860 16,462
    100 470 4,160 980 8,674 2,060 18,233
    120 529 4,682 1,080 9,559 2,060 18,233
    160 529 4,682 1,180 10,444 2,450 21,684
    58 50 353 3,124 1,020 9,028 1,960 17,347 3,000
    PDF DXF
    		Contact HDLLC for
    drawing & dxf file
    PDF DXF
    PDF DXF
    PDF DXF
    80 549 4,859 1,480 13,099 2,450 21,684
    100 696 6,160 1,590 14,073 3,180 28,145
    120 745 6,594 1,720 15,223 3,330 29,473
    160 745 6,594 1,840 16,285 3,430 30,358

    Outline Drawings and Dimensions

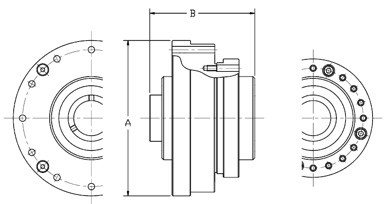

    SHF-2UH and 2UH-LW

    Unit: mm
     Size 11 14 17 20 25 32 40 45 50 58
    Symbol
    øA 64 74 84 95 115 147 175 195 220 246
    B 48 52.5 56.5 51.5 55.5 65.5 79 85 93 106
    Mass 2UH 0.53 0.71 1 1.38 2.1 4.5 7.7 10 14.5 20
    (kg) 2UH-LW - 0.55 0.8 1.1 1.6 3.6 6.2 8 11.8 16.4

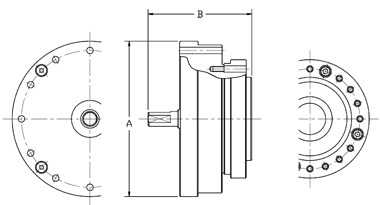

    SHF-2UJ

    Unit: mm
    Model No
    14
    17
    20
    25
    32
    40
    45
    50
    58
    Symbol
    øA
    74
    84
    95
    115
    147
    157
    195
    220
    246
    B
    50.5
    56
    63.5
    72.5
    84.5
    100
    108
    121
    133
    Mass(kg)
    0.66
    0.94
    1.38
    2.1
    4.4
    7.3
    9.8
    13.9
    19.4

    SHF-2SO and 2SH

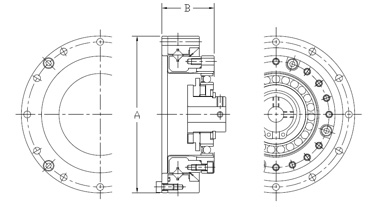

    SHF-2SO

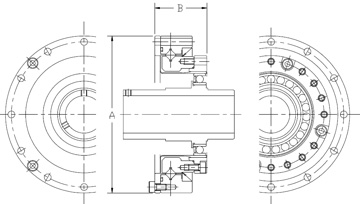

    SHF-2SH

    Unit: mm
    Model No
    14
    17
    20
    25
    32
    40
    45
    50
    58
    Symbol
    øA
    70
    80
    90
    110
    142
    170
    190
    214
    240
    B
    50.5
    56
    63.5
    72.5
    84.5
    100
    108
    121
    133
    Mass(kg)
    2SO
    0.41
    0.57
    0.81
    1.31
    2.94
    5.1
    6.5
    9.6
    13.5
    2SH
    0.45
    0.63
    0.89
    1.44
    3.10
    5.4
    6.9
    10.2
    14.1

    Positional Accuracy

    Unit: arc-min
    Gear Ratio Size 11 14 17 20 25 32 40-58
    30 Standard - 2 1.5 1.5 1.5 1.5 -
    Special - - - 1 1 1 -
    50 Standard 2 1.5 1.5 1 1 1 1
    Special - 1 1 0.5 0.5 0.5 0.5
    80 and higher Standard 1.5 1.5 1.5 1 1 1 1
    Special - 1 1 0.5 0.5 0.5 0.5
