Actuators

LAH Series

List of Features

LAH Series compact linear actuators offer high-resolution and high-thrust. A precision ball screw provides positioning accuracy better than 4 microns and repeatability of 1 micron.
LAH Series actuators are well suited for measuring instruments, test and inspection systems, optical equipment, semiconductor and LCD manufacturing equipment.
Available in 2 models:

LAH-46 (DC servo motor drive version) with maximum thrust force 390N and 0.069 micrometers of resolution.
LAH-80 (Stepping motor drive version) with maximum thrust force 3000N and 2 micrometers of resolution.

Used for

Precision mold matching
Position matching for liquid crystal board manufacturing equipment
Position alignment of precision inspection/measuring instruments
Work piece positioning for image instrumentation
Tool position alignment for precision machine tools
High-precision assembly robots

Model Ordering Code

LAH -	46	10 -	02 -	F -	L -	SP
1	2	3	4	5	6	7

1.	Model	: LAH Series
2.	Size	: 46, 80
3.	Stroke (mm)	: 10, 30 (LAH-46), 50 ( LAH-80 )
4.	Rate thrust force (N)	: 200(LAH-46), 2000(LAH-80)
5.	Mounting type	: F (Flange mounting type)
6.	Drive motor LAH-46 None: DC servo motor drive ( Open collector version) L : DC servo motor drive (line drive version) LAH-80 PA=Stepping motor drive (No shaft on the non-output side ) PB=Stepping motor drive (With shaft on the non-output side)
7.	SP: Customized Specification (not available for Standard Product)

LAH-46 List of Ratings

Item/model	LAH-46-1002-F	LAH-46-3002-F
Resolution	0.069 μm
Stroke	10mm	30mm
Maximum thrust force	390N(87.75 Ib)
Repeatability	±0.5μm or less/1mm stroke
Lost motion	5μmor less/1mm stroke
Drive motor	DC servo motor (The drive motor can be changed to a stepping motor)
Mass(g)	810	850
CAD Downloads	PDF DXF	PDF DXF

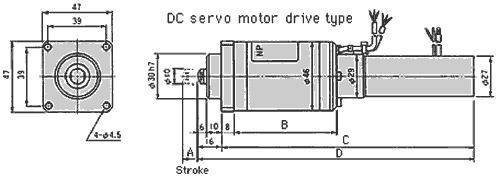

LAH-46 Product Drawing

Please confirm dimensions and specification with the drawing issued by Harmonic Drive LLC.

LAH-46 List of Dimensions

Unit: mm

Model	A	B	C	D
LAH-46-1002-F	10	69	169	185
LAH-46-3002-F	30	88	188	204

LAH-80 List of Ratings

Item/model	LAH-80-5020-F-PA/PB
Resolution	2μm (Half step)
Stroke	50mm
Maximum thrust force	3000N(675 lb)
Repeatability	±1μm or less/1mm stroke
Drive motor	Stepping motor
Mass	5kg

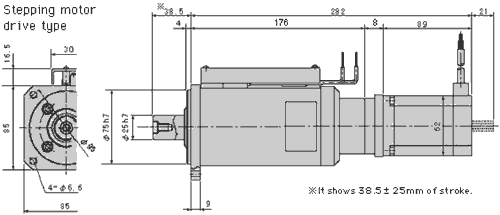

LAH-80 Product Drawing

Please confirm dimensions and specification with the drawing issued by Harmonic Drive LLC.
