CSG 2UK High Torque Gear Unit

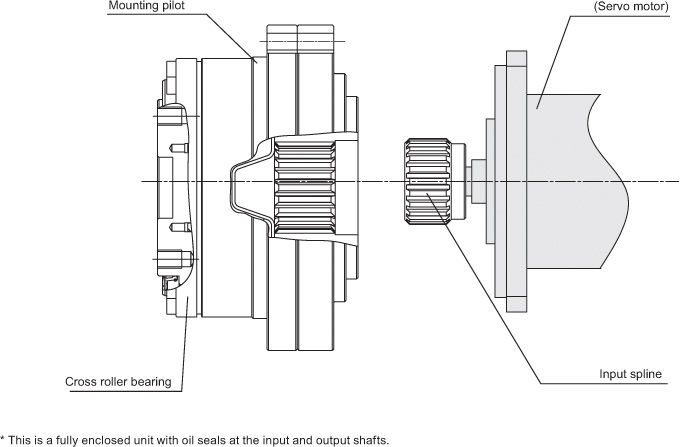

CSG-2UK is a high torque fully sealed, high accuracy gear reducer ideally suited for machine tool applications.

CSG -	25 -	100 -	2UK -	A	01-	SP
1	2	3	4	5	6	7

1.	Model Name	: CSG series
2.	Size	: 25, 32, 40, 45, 58, 65
3.	Gear Ratio	: 50, 80, 100, 120, 160
4.	Model Type	: 2UK (Sealed Gear Unit)
5.	Spline Outer Diameter	A: approx. 29mm B: approx. 44 mm C: approx. 54 mm
6.	Design Order Number	: 01 to 05
7.	Specification	SP = Custom Specification None=Standard Product

Size	Reduction Ratio	Rated Torque at 2000rpm		Limit for Repeated Peak Torque		Limit for Momentary Peak Torque
Size	Reduction Ratio	Nm	lb-in	Nm	lb-in	Nm	lb-in
25	50	51	451	127	1,124	242	2,142
	80	82	726	178	1,575	332	2,938
	100	87	770	204	1,805	369	3,266
	120	87	770	217	1,920	395	3,496
	160	87	770	229	2,027	408	3,611
32	50	99	876	281	2,487	497	4,398
	80	153	1,354	395	3,496	738	6,531
	100	178	1,575	433	3,832	841	7,443
	120	178	1,575	459	4,062	892	7,894
	160	178	1,575	484	4,283	892	7,894
40	50	178	1,575	523	4,629	892	7,894
	80	268	2,372	675	5,974	1,270	11,240
	100	345	3,053	738	6,531	1,400	12,390
	120	382	3,381	802	7,098	1,530	13,541
	160	382	3,381	841	7,443	1,530	13,541
45	50	229	2,027	650	5,753	1,235	10,930
	80	407	3,602	918	8,124	1,651	14,611
	100	459	4,062	982	8,691	2,041	18,063
	120	523	4,629	1,070	9,470	2,288	20,249
	160	523	4,629	1,147	10,151	2,483	21,975
58	80	714	6,319	1,924	17,027	3,185	28,187
	100	905	8,009	2,067	18,293	4,134	36,586
	120	969	8,576	2,236	19,789	4,329	38,312
	160	969	8,576	2,392	21,169	4,459	39,462
65	80	969	8,576	2,743	24,276	4,836	42,799
	100	1,236	10,939	2,990	26,462	6,175	54,649
	120	1,236	10,939	3,263	28,878	6,175	54,649
	160	1,236	10,939	3,419	30,258	6,175	54,649

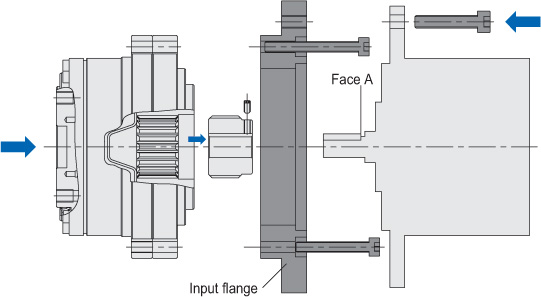

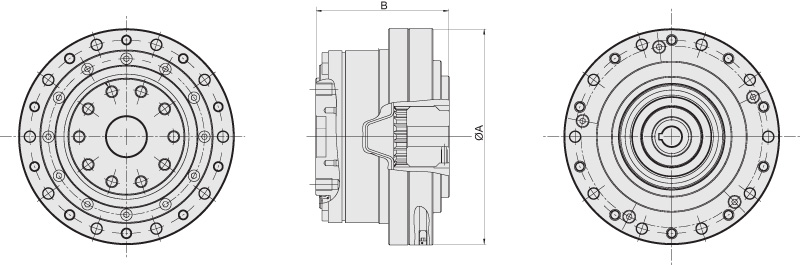

Unit: mm
