LSA Series Laser Scanning Actuators

List of Features

LSA Series laser scanning Actuators are Galvano mirror type optical scanners capable of scanning at high speed and with high precision. A newly developed optical sensor and our unique mobile magnet type motors are used for the LSA Series laser scanning Actuators

LSA Series Linear actuators
Used for

Measuring instruments

Inspection instruments

Laser marking equipment

Communications equipment

Minute processing apparatus

Printed baseboard processing equipment

Laser display

For measuring instruments

List of Ratings

Item/model		LSA-10A-30
Maximum angular runout	(deg)	±15
Torque constant	(N·m/A)	0.0077 (0.0668 In.lb/A)
Sensor Linearity (on full scale)	(%)	±0.06
Scale drift	(%/°C)	0.005
Position reproducibility (offset and scale drift excluded)	(μrad)	5
Mass	(g)	180
Combined driver		PSM-130
CAD Downloads		PDF DXF

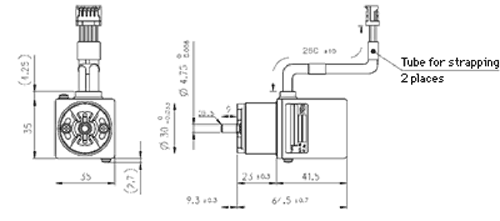

Product Drawing

LSA-10A-30

Please confirm dimensions and specification with the drawing issued by Harmonic Drive LLC.
